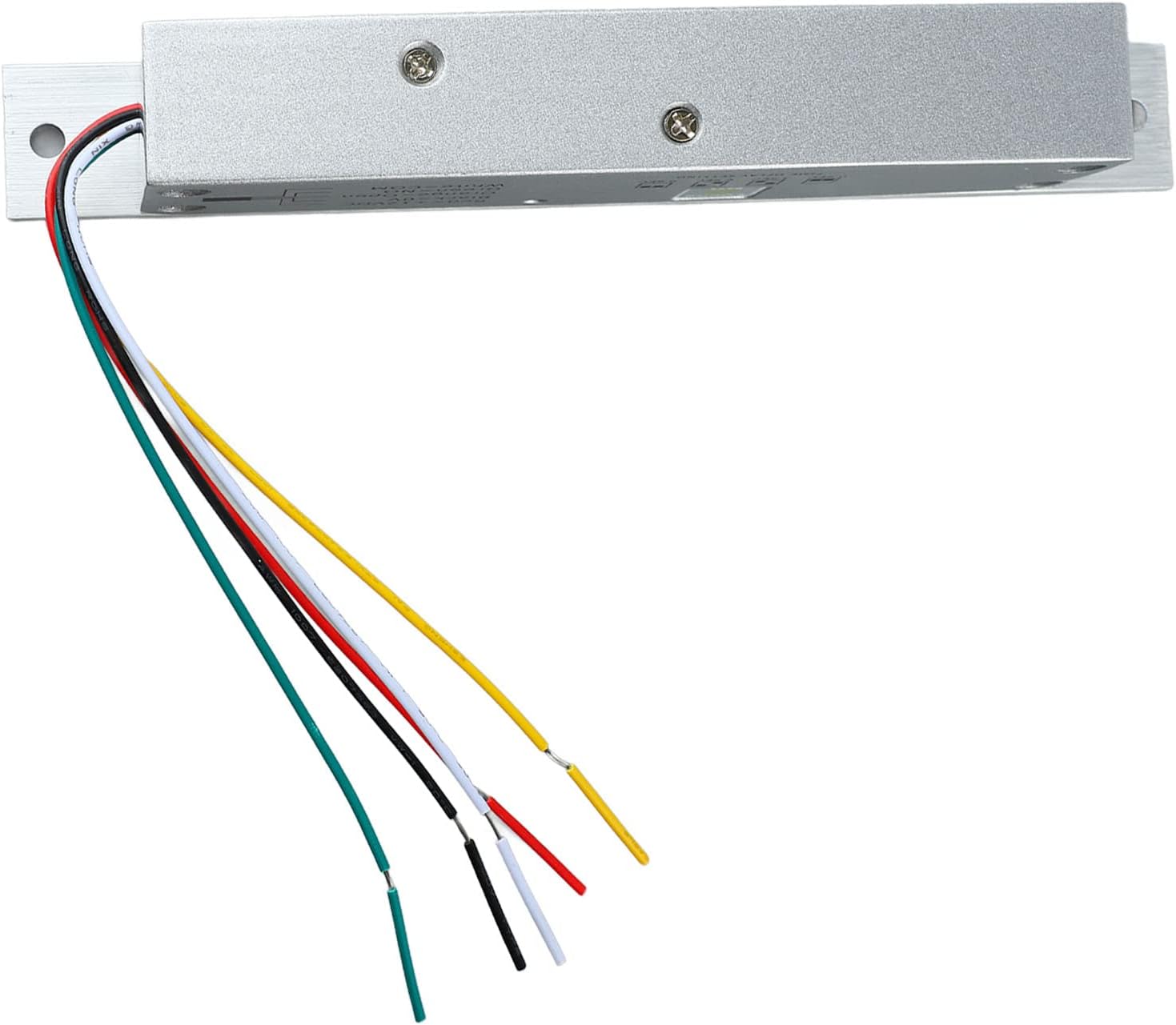

DC 12V Electric Lock with Time Delay and LED Display, Narrow Dead for Door Entry Access Control, Made of Durable Aluminium Alloy (Power Off Unlocking)

Item Type: Electric LockMaterial: Aluminium alloyWorking Voltage: DC12VWorking Current: Instantaneous starting current 1000mA, working current 120mAOpen Door Congratulation: The negative pole of the black wire is engaged with the orange wireLED Display: Dead status indication, red light when dead is retracted, green light when dead is plugged outLocking Delay: 0-3-6-9 seconds adjustableDead Size: Diameter 12.8mm/0.50in stainless steel dead, protruding length 15mm/0.59inInstallation Instructions:1. Read this manual in detail before use, checks whether the accessories are complete, and pays attention to the wiring method and installation precautions.2. This product is composed of lock body and door valve plate, the circumferential distance between the door valve plate and the electric lock shall not exceed 8mm during installation, so as to avoid insufficient magnet induction, pay attention to the lock tongue corresponding to the door valve plate hole.3. The electric lock wiring is led by red, black, orange, green, white, five colors. The red wire is connected to the positive pole of the lock (+), the black wire is connected to the negative pole of the lock (-), the green line and the white wire are the door signal, the white line is the common end (COM), the green line is normally open (NO), the orange line is the door opening line and the black line can be connected at the same time, and the door button can be connected.4. Lock delay setting, a total of four setting method, 0-3-6-9 seconds adjustable.Package List：1 xElectric Lock1 x Sticker10 x Screw2 x Gasket1 x Metal Patch1 x Keyhole Iron Sheet

• Durable Aluminium Alloy Construction: Built to withstand the test of time, this electric lock is crafted from aluminium alloy, ensuring -resistance and durability.
• Time Delay Function for Safety: Features a door close time delay, locking only after the door has completely stopped moving. This effectively prevents damage to the door and lock.
• LED Display for Easy Monitoring: Equipped with an LED display that indicates the status of the deadbolt, allowing for easy monitoring and troubleshooting.
• Adjustable Locking Delay: Offers four adjustable delay settings (0-3-6-9 seconds), providing flexibility to meet different security needs.
• Complete Installation Kit: Comes with all necessary accessories for a hassle-effortless installation, including screws, gaskets, and a metal patch.
