30M/98FT OS2 LC to LC Fiber Patch Cable, Single Mode Duplex 9/125um LC Fiber Optic Cable Indoor/Outdoor, 1G/10GB SM Fiber Optic Jumper Cable, LSZH Black OD-7.0mm

Product Description:Fiber Type: G652D Single-Mode Fiber, 9/125μm Connector Type: LC/UPC-LC/UPC Fiber Core Count: 2 Cores Tight-Buffered Fiber Diameter: 0.85mm±0.05mm; Material: LSZH Inner Branch Cable Diameter: 2.0mm±0.2mm; Material: LSZH; Color: Blue, Yellow Outer Jacket Diameter: 7.0mm±0.2mm; Material: LSZH; Color: Black Total Length: 5M Branch Length: 0.5M Connector Insertion Loss: ≤0.3dB (Typical Value) Connector Return Loss: ≥50dB (UPC)

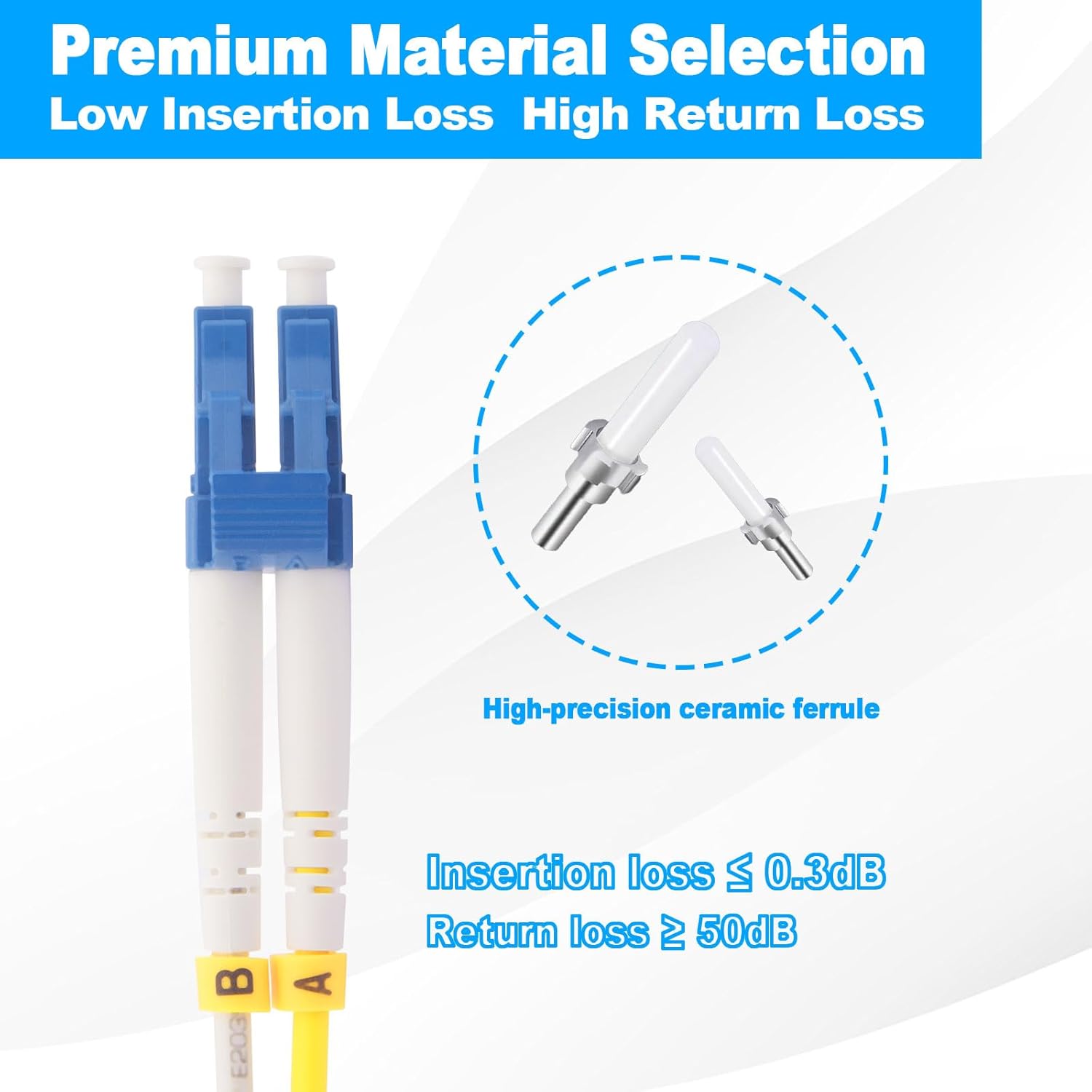

• Stable Transmission: The LC to LC fiber optic cable OS2 adopts high-precision ceramic ferrules, with an insertion loss of ≤0.3dB, minimizing optical power loss; the return loss is ≥50dB, effectively suppressing signal reflection. It ensures transmission quality.
• Low Loss and High Speed: This OS2 LC to LC single mode duplex fiber optic cable uses G652D single-mode fiber (9/125μm). The typical attenuation values at the 1310nm/1550nm windows are ≤0.34dB/km and ≤0.30dB/km respectively, with a low dispersion coefficient, suitable for high-speed optical communication.
• Unique Design: This OS2 LC to LC fiber patch cable is reasonably designed. The outer diameter of the blue/orange branch cable is 2.0mm, which facilitates wiring in equipment-dense areas. The main cable has an outer diameter of 7.0mm with a black LSZH outer sheath, meeting the wear and stretch requirements of conventional indoor scenarios.
• Widely Used: This single mode duplex fiber patch cable can achieve low-loss, highly reliable long-distance transmission of optical signals between BBU and RRU in 5G base stations, high-density wiring scenarios between data center servers and optical switches, and FTTH.
• Safe and Reliable: This LC to LC fiber patch cable uses LSZH material (tight buffer, inner cable, outer sheath), passes the flame retardancy test, and produces low smoke and is halogen-free when burned, enhancing the safety of the scene.
